STUD MOUNTS

Cup and Industrial Mounts

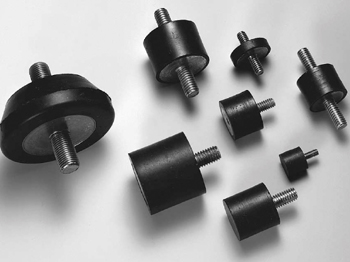

Stud Mounts are named to describe the 'stud' end or ends typically found on these mounts but are not the only type of attachment end  available.  Stud mounts com in various sizes and shapes.  They are best used in compression although some find their way into limited shear loaded applications.  Stud mounts should never be used in tension and they are not a fail-safe design.

Select from one of the Stud Mount types below  for more specific information.

 Barry Stud Mounts
SPECIALTY ISOLATORS LOAD NATURAL ALL 1:1 PRIMARY
RANGE FREQUENCY ATTITUDE STIFFNESS APPLICATION
Double Stud (Male/Male) Series

Male-Male Stud Mount

 1 - 150 (Compression)

2 - 40 (Shear)

  ~8Hz-30Hz No No Vib/Shock/Noise
Stud Insert (Male/Female) Series

Male-Female Stud Mount

 4 - 100 (Compression)

1 - 20 (Shear)

 ~8Hz-20hz No No Vib/Shock/Noise
Bumpers (Male Stud only) Series

Male-Bumper Stud Mount

 3 - 100 (Compression) - Yes No Shock/Noise
